Supports chip M35080, M35080-3, M35080-6, M35080V6, M35080VP, D80D0WQ, 160D0WQ,36160WT
Perfect replacement of original chip
Refuse the red dot!
Support Replacement Chip Models:
M35080
M35080-3
M35080-6
M35050V6
M35080VP
D80D0WQ
160D0WQ
35160WT

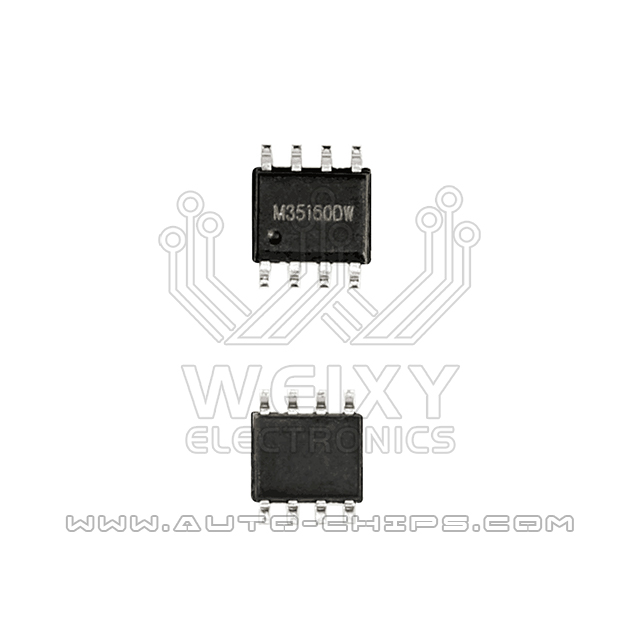

How to use Xhorse 35160DW Chip with VVDI Prog?
Instruction: This chip used as replacement for ST company 35080xxx, 35160xx, 080D0xx, 160D0xx ,.etc types
Steps:
1. Backup data: Read and Save the dashboard original IC from 3 partitions(MEMORY+LONGID
+ID LOCATION) or ALL option (ALL=MEMORY+LONGID+ID LOCATION)
2. Write data: After replace original chip by Xhorse 35160xx chip, please write step1 saved 3 dumps to each partition on xhorse chip by VVDI PROG.
3. Mileage correction: ‘Erase INC’ button is for erasing the front 2 lines, after erase INC operation then select ALL or MEMORY option to Read data for verify,
Reading data the front 2 lines should all ‘00’, manually enter the targert mileage, then click Write option, operation completed.
4. Verify data: Soldering back the Xhorse chip to dashboard, check whether working well without red dot.
