Mercedes-Benz Full Test Platform Pro for EZS EIS ESL ELV Dash Gateway ECU TCU VGS ISM

No.WXY6170

📘	Product Manual	Download
	Video	Watch

0.0 (0 Reviews)

86 Sold

$429.00

Received successfully

Coupon Code

Description

WEIXY Electronics · Mercedes-Benz Bench Platform

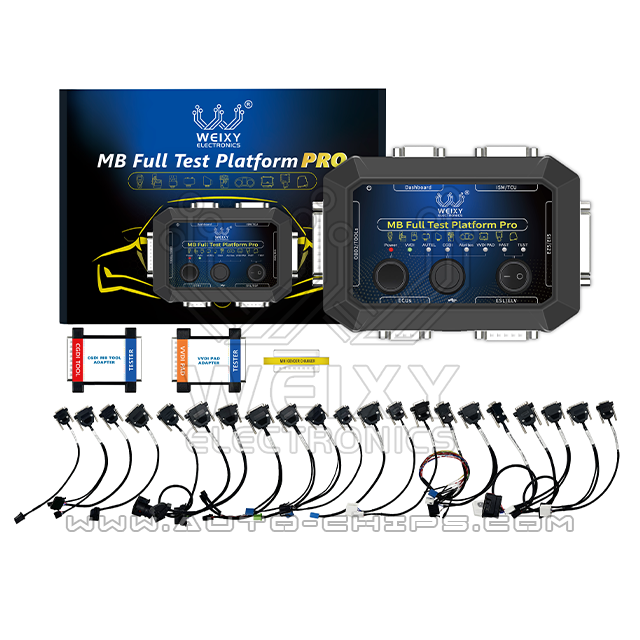

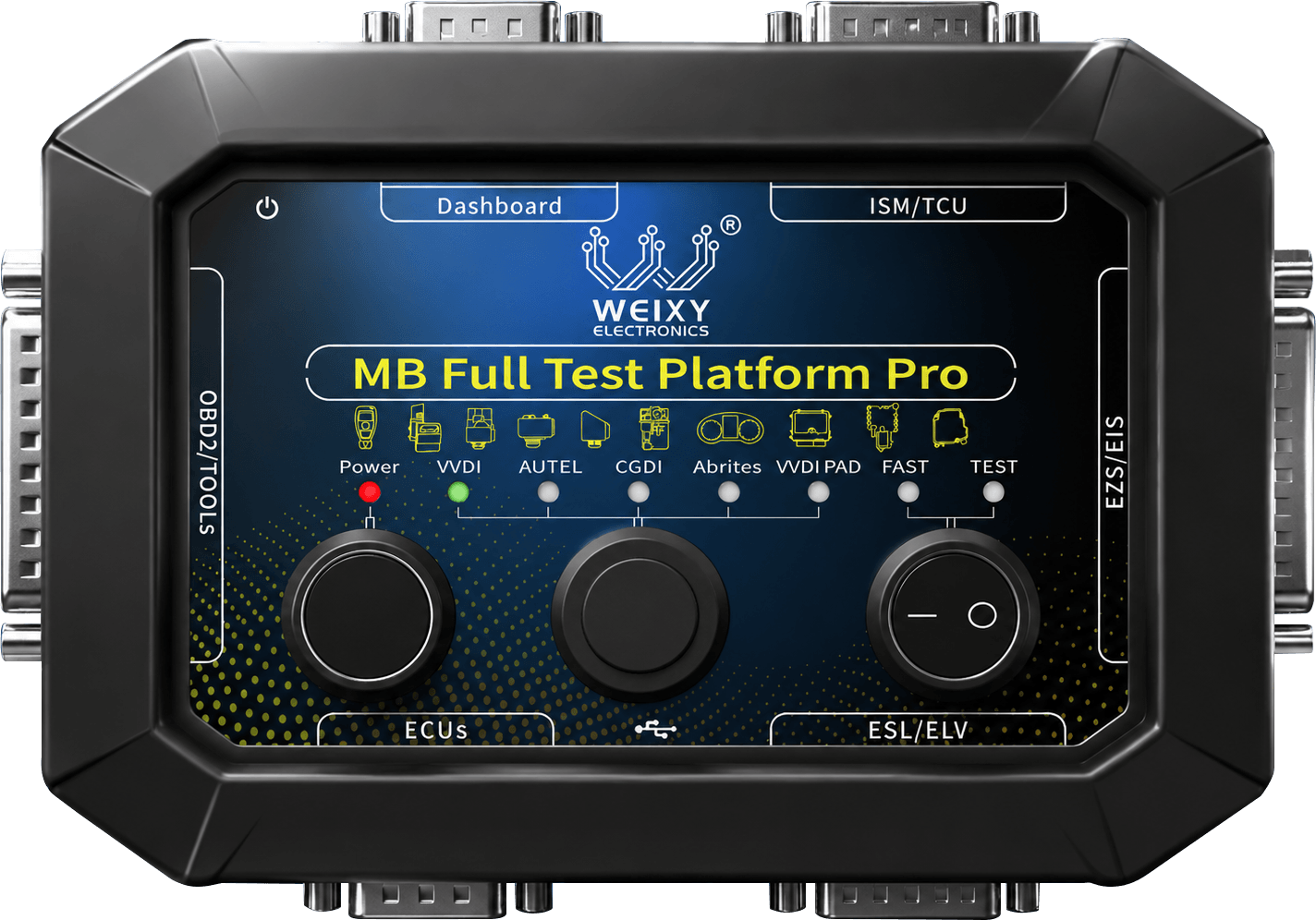

MB Full Test Platform Pro

★ Supports ALL FBS3 Modules ★ Selected FBS4 Models

A professional bench testing platform for Mercedes-Benz EZS/EIS, ESL/ELV, Dashboard, Gateway, ISM, TCU/VGS and ECU modules — test, read and program without connecting the complete vehicle.

Professional Module Testing for Mercedes-Benz Vehicles

One bench, six module families, zero guesswork.

The MB Full Test Platform Pro from WEIXY Electronics is purpose-built for Mercedes-Benz immobilizer and module repair — giving technicians a single box for testing, reading, programming and repair work, completely off the vehicle.

✓Full module coverage — EZS/EIS, ESL/ELV, Dashboard, Gateway, ISM, TCU/VGS and ECU testing in one platform

✓Works with your existing tools — VVDI MB TOOL, AUTEL, CGDI MB, Abrites and VVDI Key Tool Plus Pad connect through dedicated bench ports

✓Broad immobilizer coverage — all FBS3 modules, plus selected FBS4 models

MB Test Platform Pro Features

Eight core capabilities that cover the full Mercedes-Benz bench repair workflow.

Multi-Tool Compatibility

Works directly with VVDI MB TOOL, AUTEL, CGDI MB, Abrites and VVDI Key Tool Plus Pad.

ESL/ELV Emulator

Test EZS/EIS modules on the bench without a physical ESL/ELV unit connected.

Gateway Emulator

Read EZS/EIS files or passwords without routing through the vehicle gateway.

TCU / ISM / ECU Testing

Test or renew 7G TCU/VGS, ISM and ECU modules off the vehicle.

Flexible Tool Support

One bench platform, multiple programming tool workflows.

Dealer-Level Diagnostics

Perform MB dealer tool diagnostic and coding operations.

Immobilizer Coverage

Full FBS3 support across all modules.

+ FBS4 Partial Support

FAST Adapter Function

Calculate key passwords for all-keys-lost cases via the built-in FAST Adapter.

Support List

Confirmed module and system coverage from the product manual.

Dashboard

1 Variant

Dashboard Module

ISM

1 Variant

ISM Module

7G TCU

1 Variant

7G TCU Module

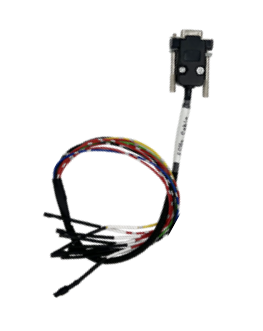

ECUs

13 Variants

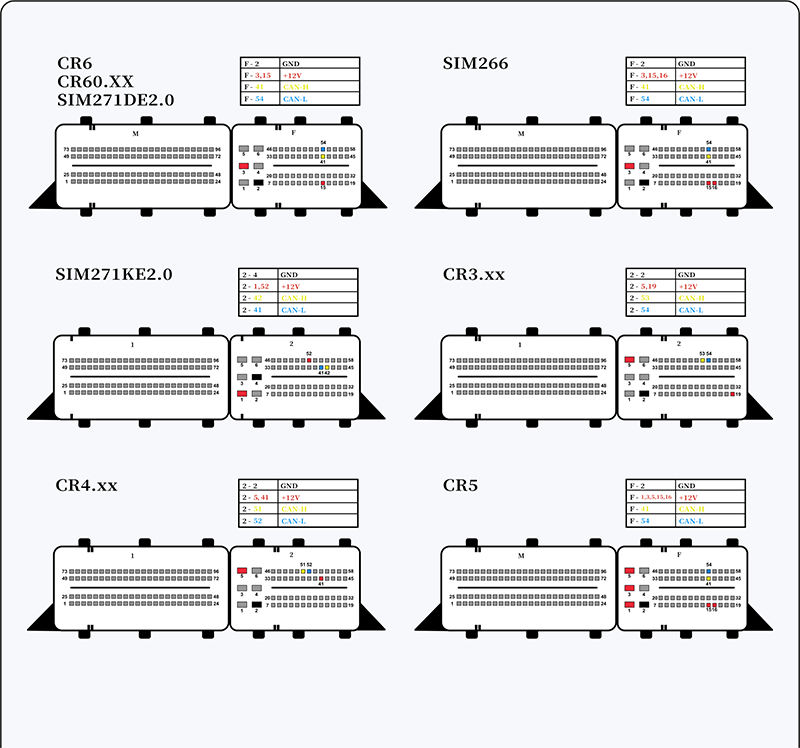

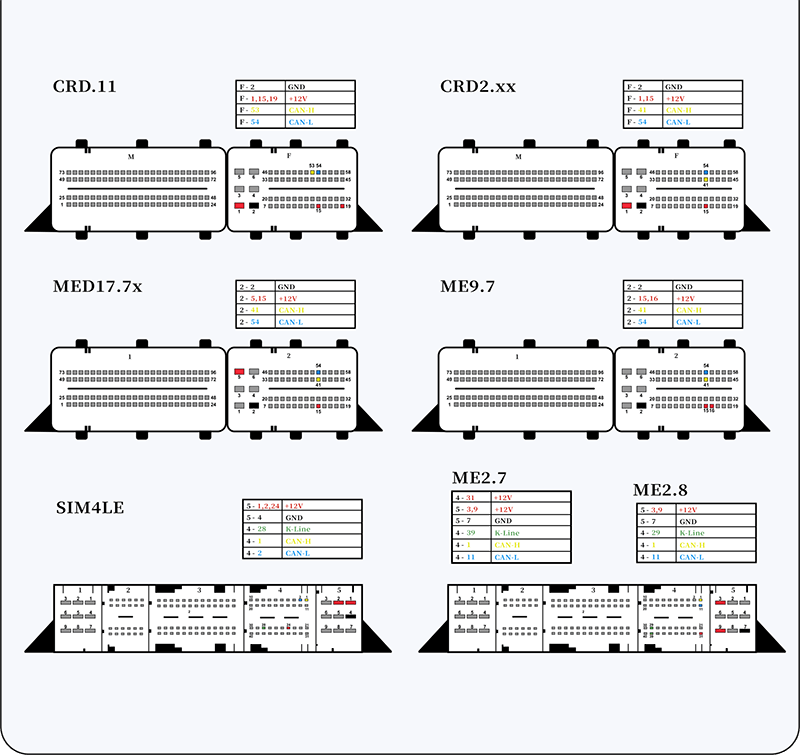

CR3.XX CR4.XX CR5 CR6 / CR60.XX / SIM271DE2.0 SIM4LKE SIM271KE2.0 CRD.11 CRD2.XX ME9.7 MED17.7.X SIM266 ME2.7 ME2.8

ESL/ELV

6 Variants

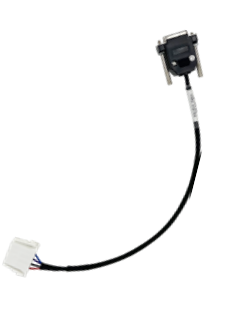

204 207 212 4P ESL/ELV 169 245 4P ESL/ELV 203 3PIN ESL/ELV 203 211 219 209 906 639 5PIN ESL/ELV 202 208 210 5P ESL/ELV 176 246 447 5P ESL/ELV

EZS/EIS

11 Variants

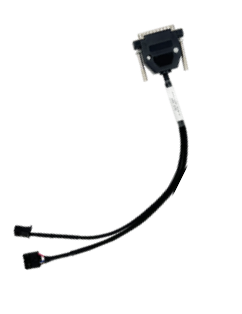

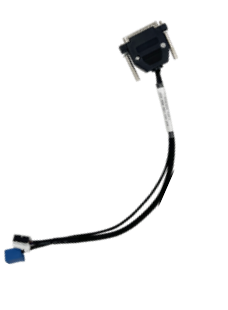

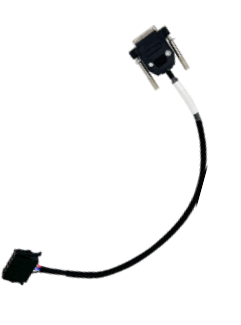

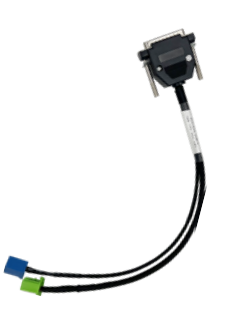

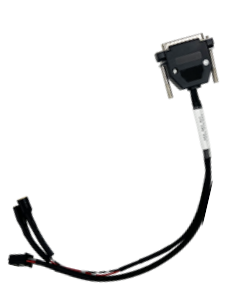

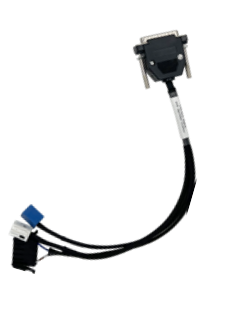

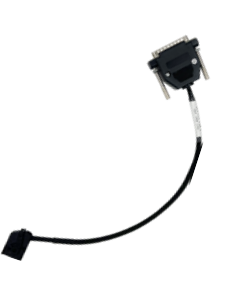

164 251 EZS/EIS 197 212 218 EZS/EIS 166 176 246 447 EZS/EIS 169 245 209 211 171 EZS/EIS 172 204 207 212 EZS/EIS 203 463 639 Vito EZS/EIS 202 208 210 EZS/EIS 215 220 230 EZS/EIS 221 216 EZS/EIS 906 Sprinter Crafter EZS/EIS 205 222 EZS/EIS

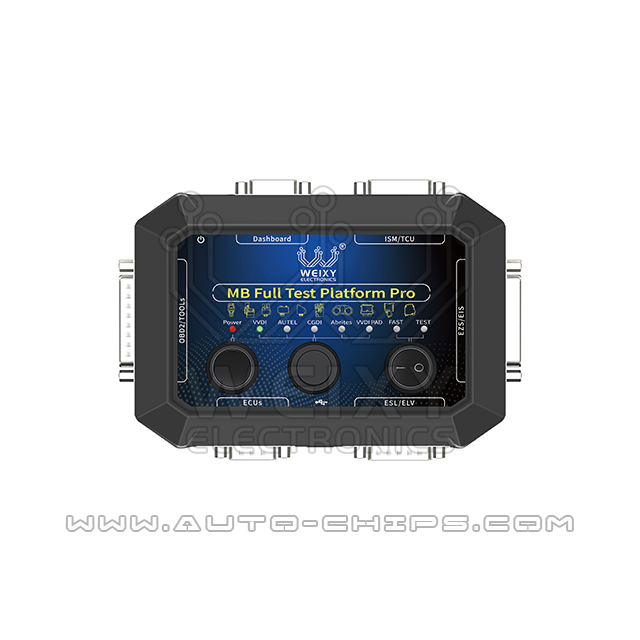

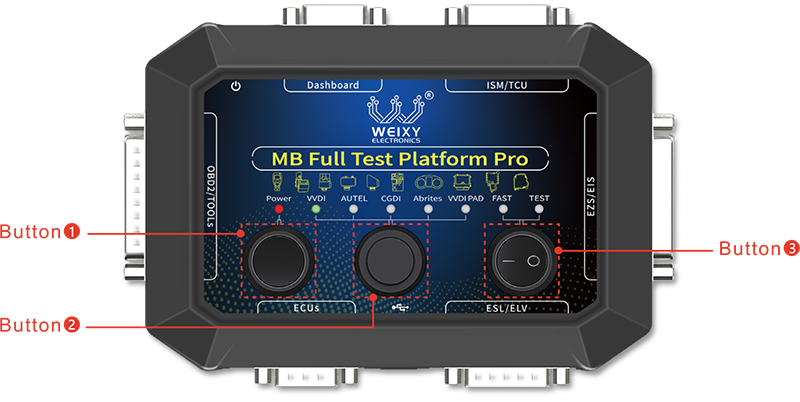

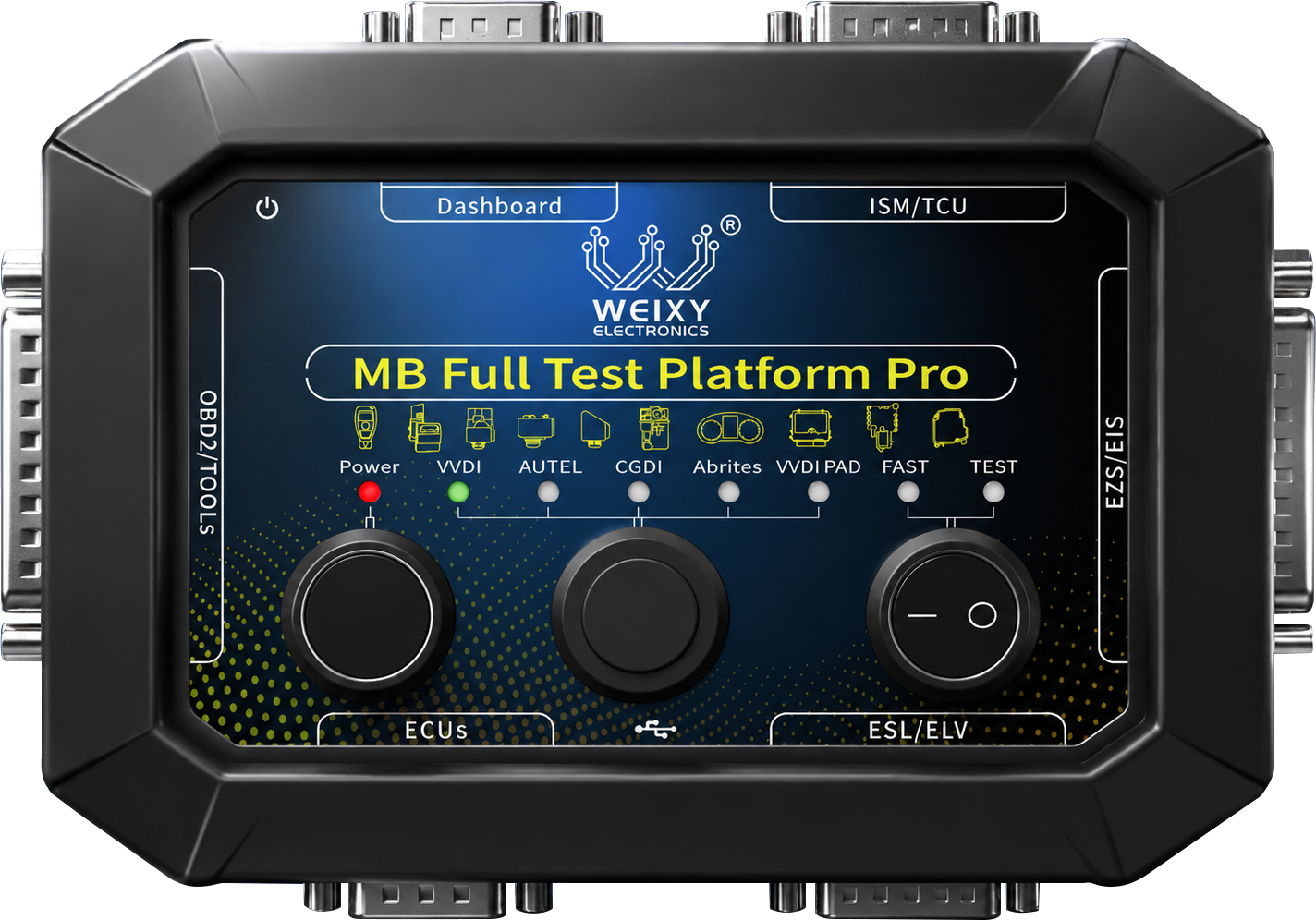

Tester Details

Button 1 — Power

Button 2 — Device Switch From left to right, they represent: VVDI MB TOOL, AUTEL, CGDI MB, Abrites, VVDI Key Tool Plus Pad.

Button 3 — FAST / TEST Switch to TEST when testing EZS/EIS or adding keys that need password calculation. Switch to FAST when all keys are lost and a password needs to be calculated.

Attention: Different devices use different protocols — make sure Button 2 is switched to the device you are using.

Key Points Technicians Ask About

The three questions that come up most when first using the MB Full Test Platform Pro.

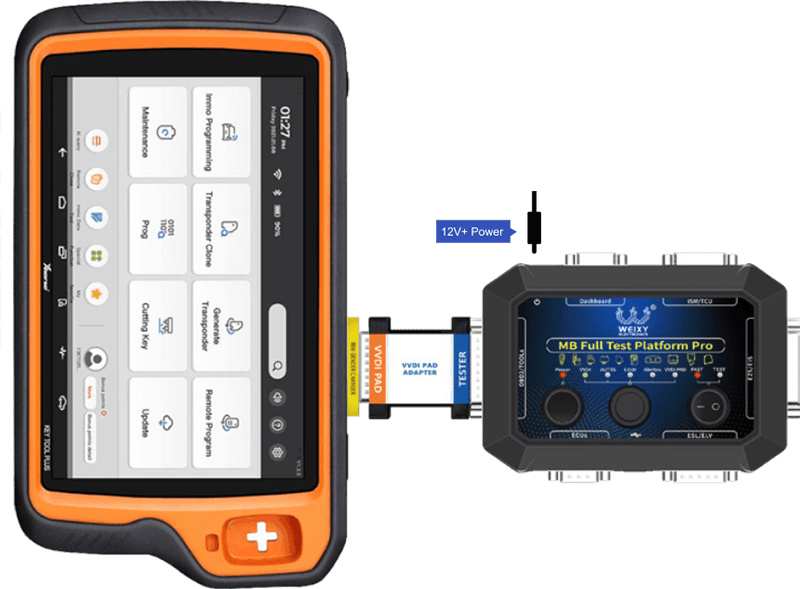

Q1How do I connect different devices?

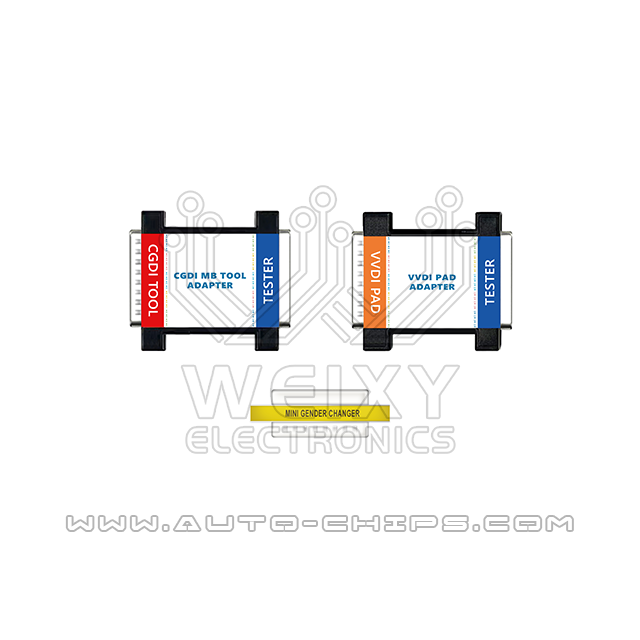

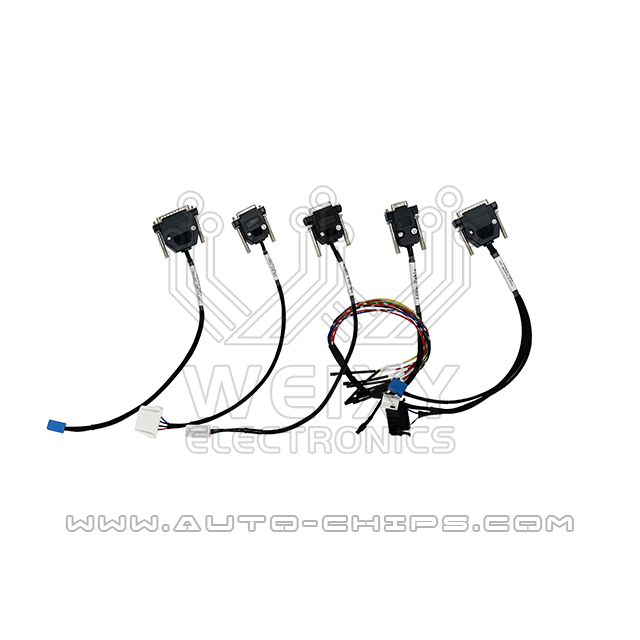

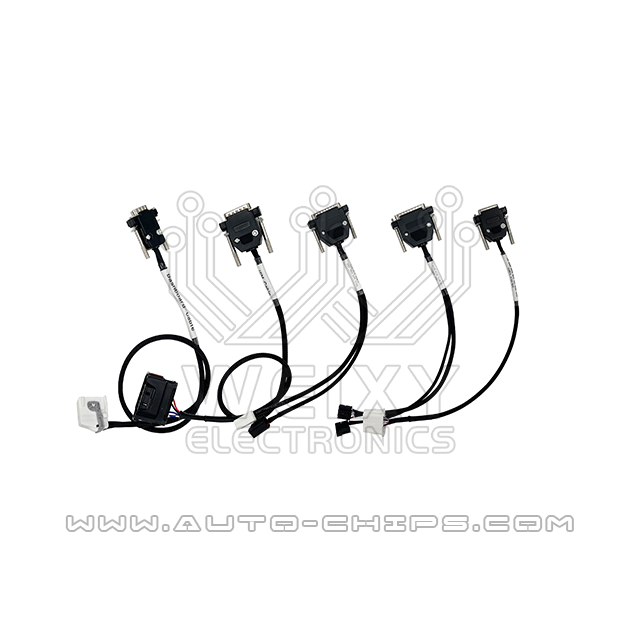

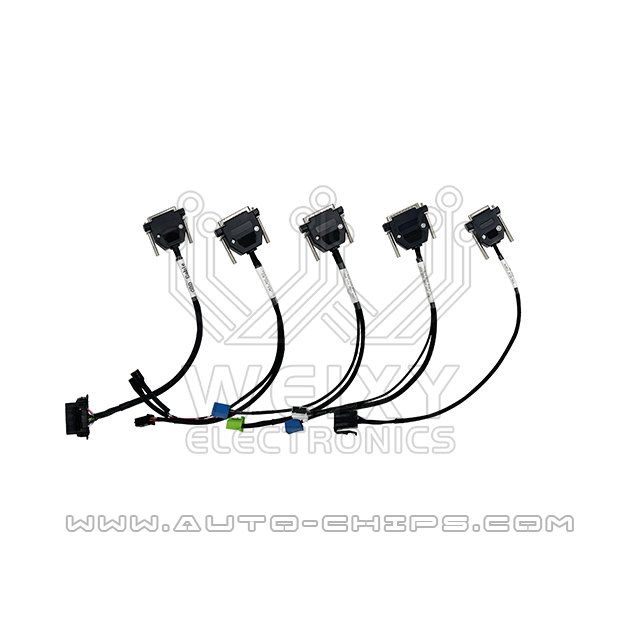

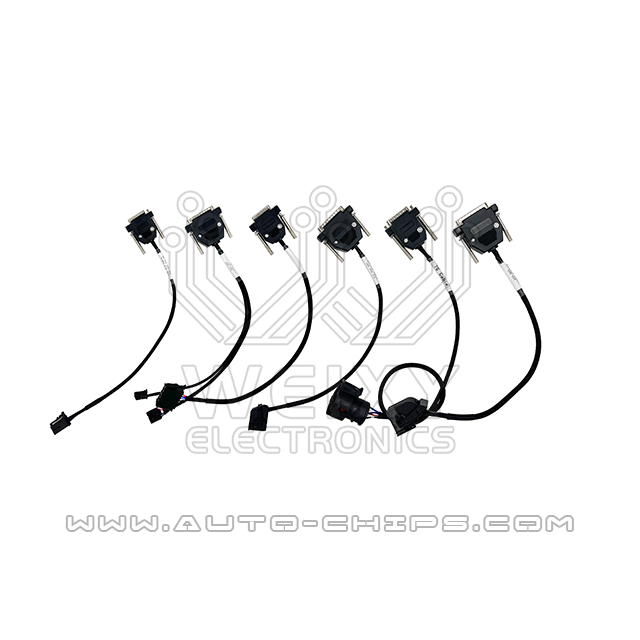

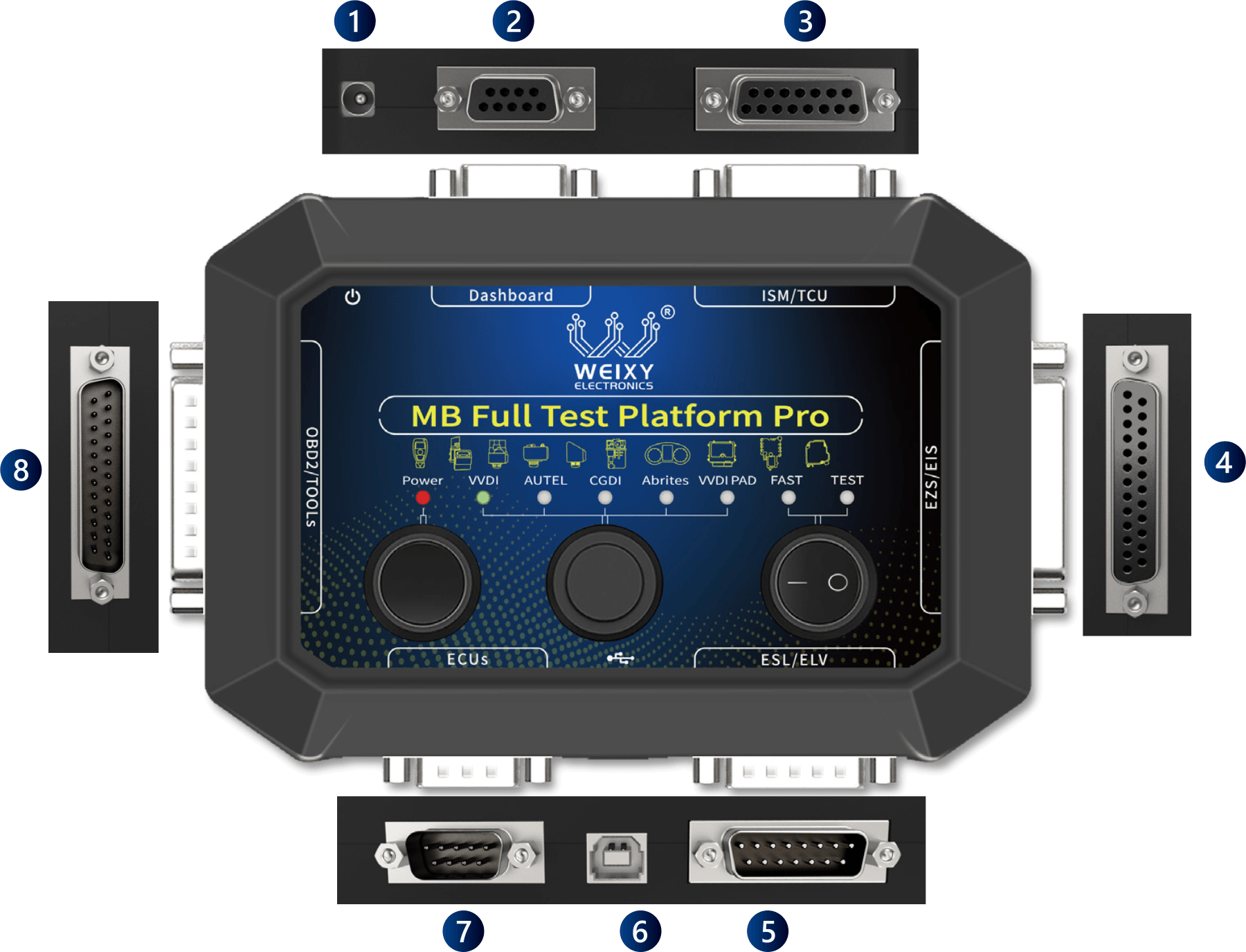

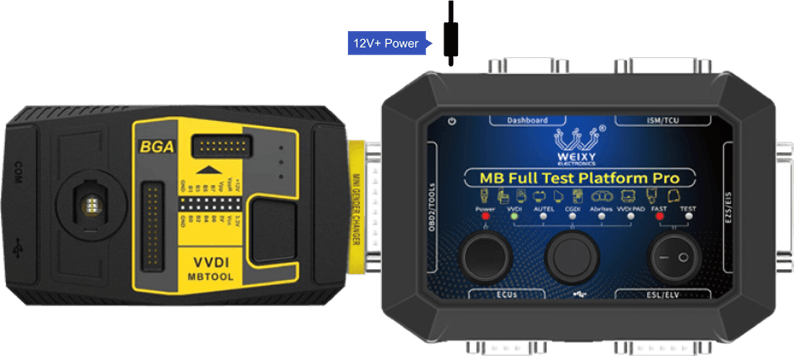

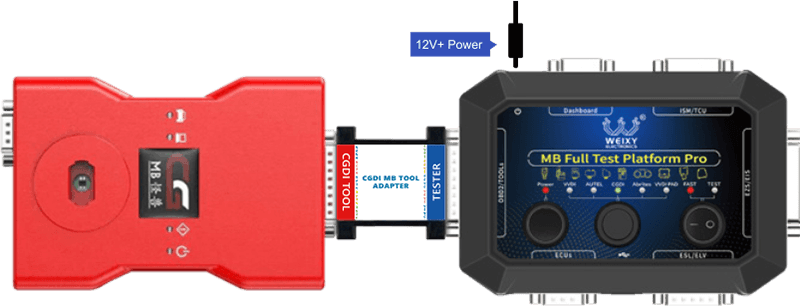

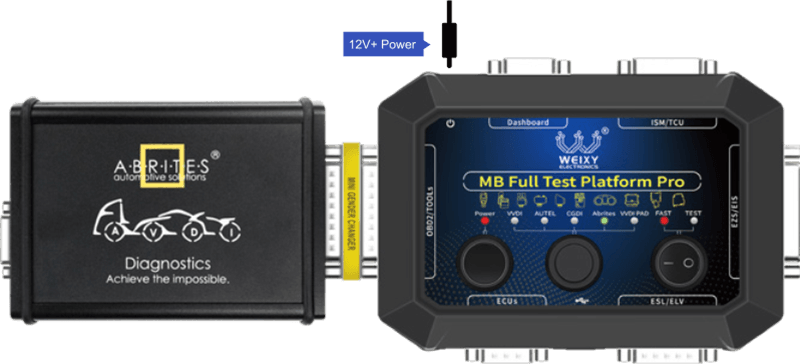

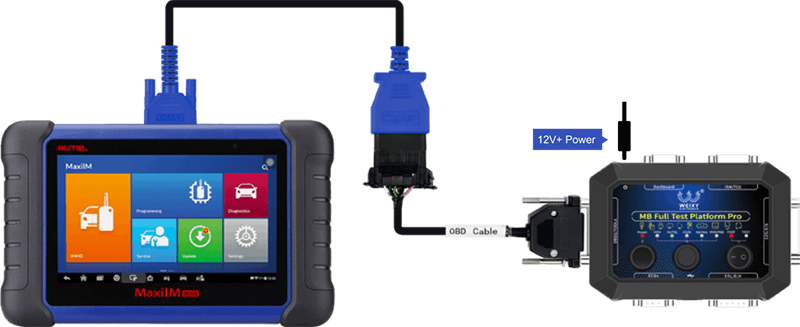

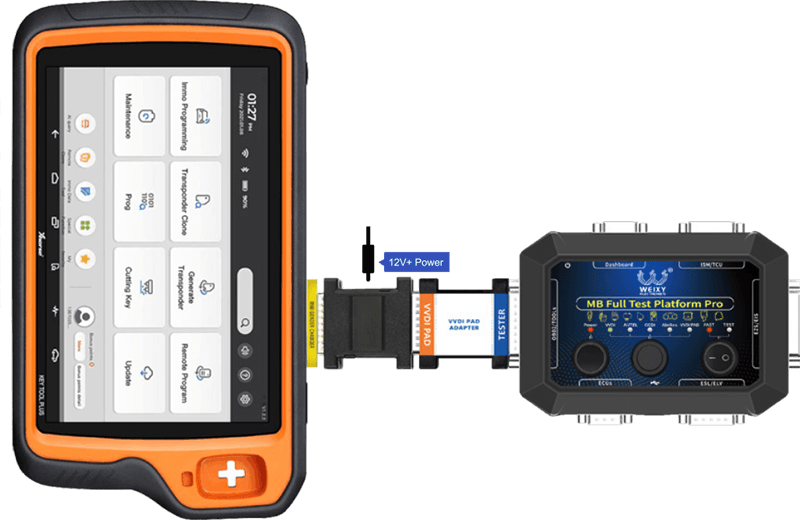

Switch Button 2 (Device Switch) to match the tool you're using — VVDI MB TOOL, AUTEL, CGDI MB, Abrites, or VVDI Key Tool Plus Pad — then connect that tool through its dedicated adapter into the matching bench port. Each tool's exact wiring is shown in the connector diagrams below.

Q2How do I use the FAST button?

Button 3 switches between FAST and TEST. Move it to FAST only when all keys are lost and you need the platform's FAST Adapter function to calculate a new key password.

Q3What's the difference between FAST and TEST?

TEST — for EZS/EIS testing, or adding an extra key that needs password calculation.
FAST — for all-keys-lost situations, where the password must be calculated through the FAST Adapter function.
