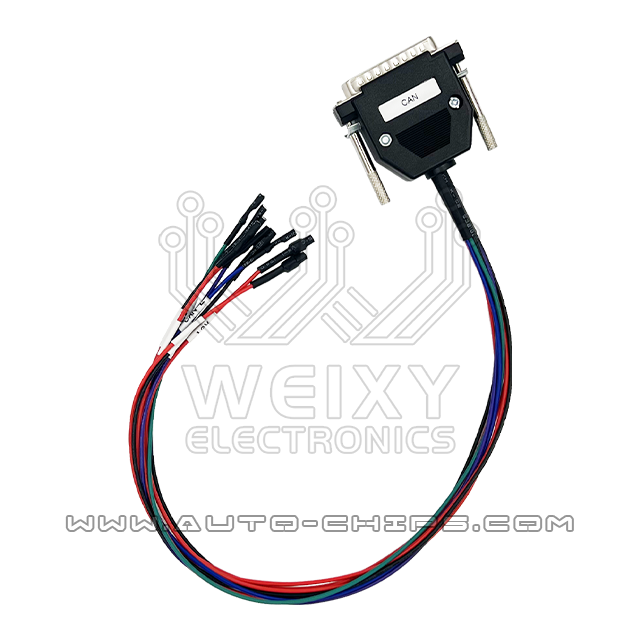

A dedicated bench-mode adapter built exclusively for the Ultra‑S Programmer. Breaks out CAN, K‑LINE, power and ground lines into individual flying leads for fast, secure connections during bench-side module work.
Requires
Ultra‑S Prog Programmer
This adapter is an add-on accessory and does not work as a standalone device. You'll need the Ultra‑S Prog to use it.
View Ultra‑S Prog →This adapter is designed to work exclusively with the Ultra‑S Programmer, for bench-side jobs only. It is not intended for OBD-style in-vehicle diagnostics or for use with other programming tools. Always confirm pin assignment against your target module before powering on.
Every wire is labeled and color-coded at the tip, so connecting to a bare module on the bench is fast and mistake-free.
High-speed CAN bus, positive line
High-speed CAN bus, negative line
ISO 9141 / KWP2000 diagnostic line
Power supply leads for the target module
Ground reference leads
Skip the OBD connector entirely. Wire straight into a bare ECU, cluster, or control unit sitting on your bench.
Individually terminated leads reduce the chance of intermittent contact during long read/write sessions.
Each lead is marked at the tip, so identifying CAN, K‑LINE, power, and ground takes a glance, not a guess.
Sold separately as an optional add-on for technicians who need bare-module bench access.
